I need simple metal stairs shop drawings for permit.

I need simple metal stairs shop drawings for permit.

https://www.idrawpro.com/iDRAW-Steel-Detailing-Team
Team:Steel Detailing
Services:Shop Drawings
Lead time:1 Business Day



Need stairs shop drawings? just direct message! our team will reach out!
• Signup by clicking the button on the right or,
• Email: support@idrawpro.com
• Call: (844) 437 2977

*AVERAGE COST PER SHEET: $195.00

34510

Simple metal stairs shop drawings

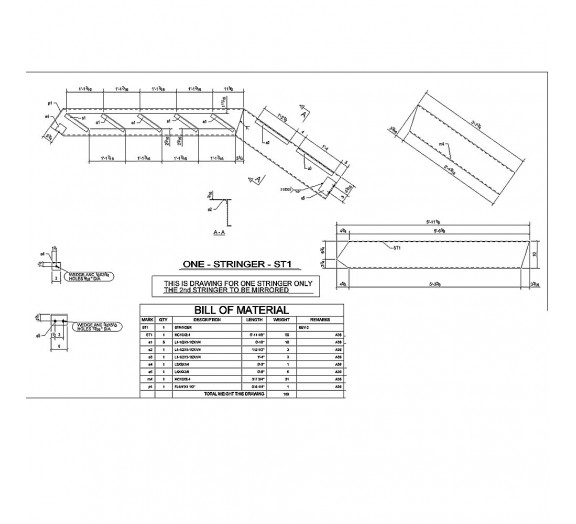

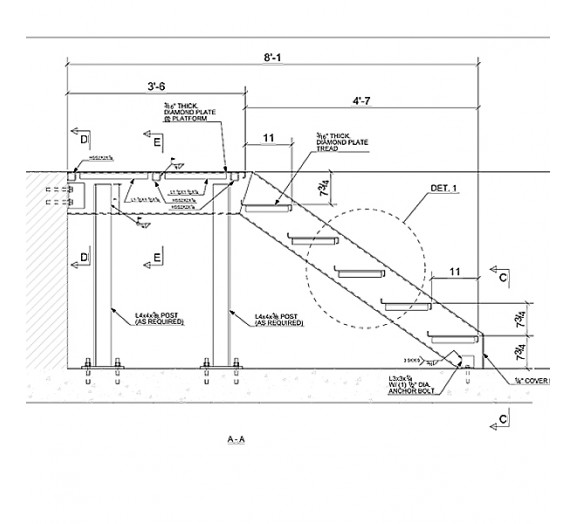

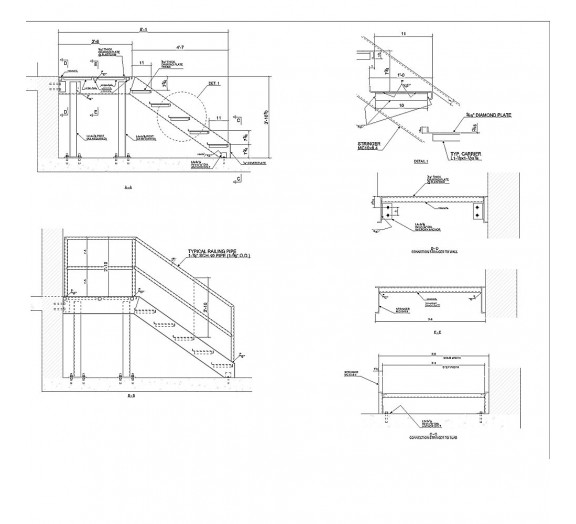

Height - 46.5”, Length from Wall - 92”, Five (5) Total Steps with Step Extra for Landing, Rise - 7.5”, Run - 11”, Landing - 42” x 42”, Railing Diameter - 1 1/4”, Railing Height - 34”, Stringer - 10” x 1/4” Thick, Landing Supports - 3 Total 2 x 2” Tubular, Step Material - Diamond Plate 3/16”

Need project like this? start with a free quote.



About our structural steel detailing services

We provide steel and misc metals detailing services including shop drawigns for structural steel, ornamental steel, stairs, railings, fences.

How you benefit using our services

• We specialize in steel detailing
• We have an experienced team
• We use the leading software and latest technology
• We guarantee competitive pricing and quick turnaround



*Average cost per sheet shown total contract amount will vary.
